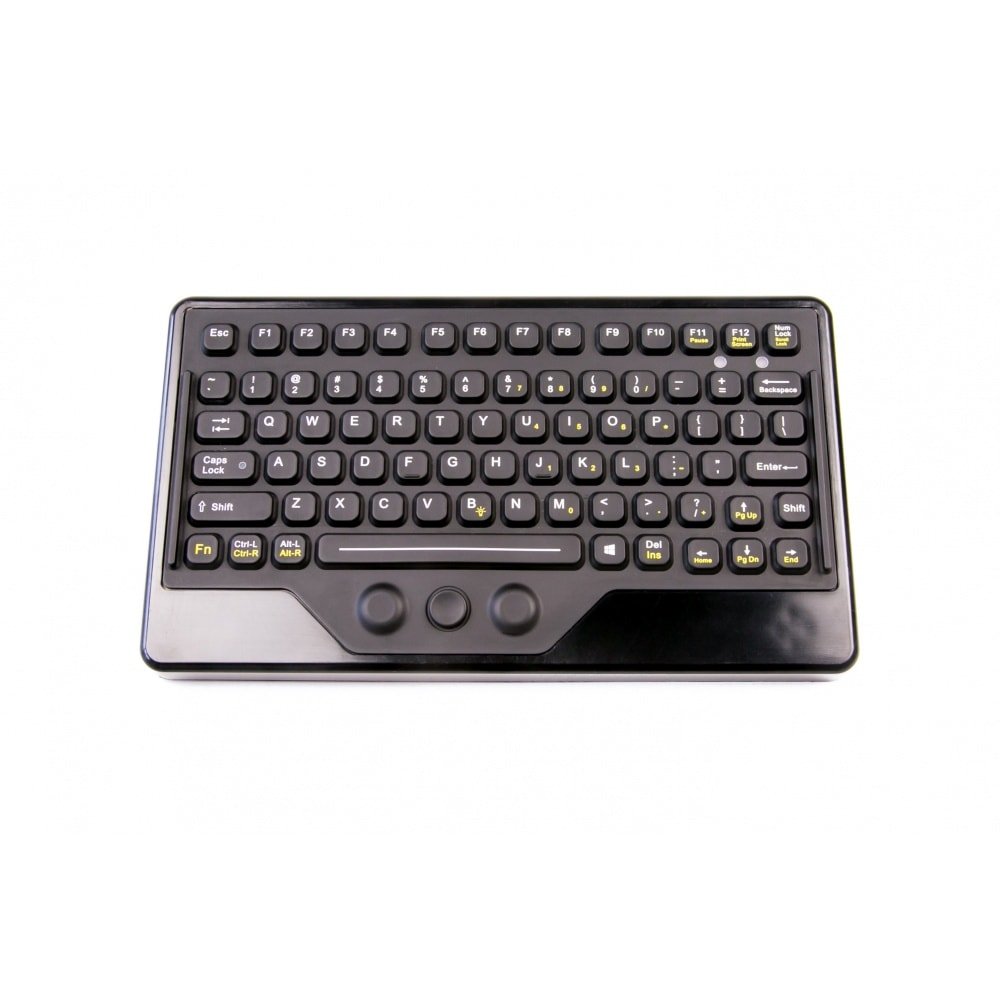

iKey IK-77-FSR Desktop Keyboard

iKey IK-77-FSR Desktop Keyboard

A compact, sealed 77-key keyboard with force sensing resistor pointing device and red backlighting, for military, emergency vehicle, warehouse and forklift use.

IP rating
IP66
Mounting
Desktop
Connection
PS2, USB
Keys
77
  • Red LED backlight
  • USB configuration available
  • Industrial silicone rubber
  • 12 function keys
Request a quote View specifications

✓ Quotes within 24 hours  ·  ✓ Genuine products  ·  ✓ UK-based support

iKey IK-77-FSR Desktop Keyboard Request a quote

Overview

The iKey IK-77-FSR is a compact, sealed keyboard with a built-in force sensing resistor (FSR) pointing device, designed for efficient use where space is tight. It is aimed at military applications, emergency vehicles, warehouses and factory floors, and can be mounted into forklifts and other work vehicles.

Built with an industrial silicone rubber body to NEMA 4X specifications, it resists shock, vibration, extreme temperatures and humidity. The upgraded FSR pointing device offers improved sensitivity and durability for easy on-screen navigation.

Key features

  • Sealed design rated IP66 and built to NEMA 4X specifications
  • 77 keys, including 12 function keys
  • Integrated force sensing resistor pointing device
  • Red LED backlighting
  • Industrial silicone rubber keys rated for more than 10 million cycles, with a tactile mechanical snap
  • Compact ABS polycarbonate case measuring 209.6 x 120.7 x 16.8 mm
  • Operating temperature of -20°C to +60°C
  • USB or PS/2 connection

Where it is used

The IK-77-FSR suits military applications, emergency vehicles, warehouse and factory environments, and forklifts or other work vehicles.

Get a quote

Fill in the quote form on this page with your application and quantities, and we will come back to you with pricing within 24 hours.

Features

Red LED backlight
USB configuration available
Industrial silicone rubber
12 function keys

Technical Data

SKU
IK-77-FSR
Manufacturer
iKey
Mounting Format
Desktop,Free Standing,Mobile,Vehicle Mount,VESA,VESA Mount
IP Rating
IP66
Integrations
Force Sensing Resistor
No. Of Key
77
Key Switch
MATERIAL: Industrial Silicone Rubber LIFE: Greater than 10 million cycles TRAVEL: 0.055 in. ACTUATION FORCE: 7.05 oz. +/- 1.06 oz (200g +/- 30g) FEEDBACK: Tactile with mechanical snap
Keycap Profile
Industrial Silicone Rubber
Keycap Material
Industrial Silicone Rubber
Actuation Force
Tactile with Mechanical Snap
Connectivity
PS2,USB
Case Material
ABS Polycarbonate
Housing Colour
Black
Operating System
Windows, Mac OS X
Temperature Rating
STORAGE: -40C to +70C (-40F to +158F) OPERATING: -20C to +60C (-4F to +140F)
Vibration
POWER SPECTRAL DENSITY: .04g/HZ FREQUENCY RANGE: 20Hz-2Khz DURATION OF TEST PER AXIS: 3 hours
Dimensions
8.25" x 4.75 x 0.66" (w-h-d) 209.55mm x 120.65mm x 16.764mm
Weight
0.5 lbs +/- 0.10 lbs (0.23 kg +/- 0.05 kg)
Certifications
CE, RoHS compliant
