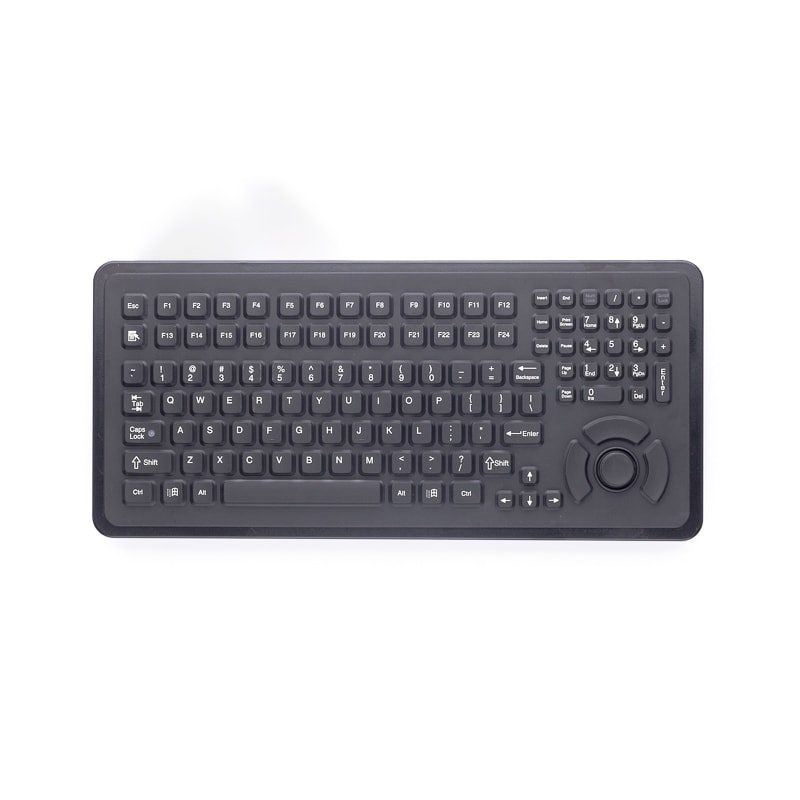

iKey PMU-5K-FSR Panel Mount Keyboard

A sealed 116-key panel mount keyboard with integrated force sensing resistor, 24 function keys and Windows keys, for industrial workstations.

IP rating: IP66
Mounting: Panel Mount
Connection: PS2, USB
Keys: 116

Ms Windows Function Keys
Integrated Force Sensing Resistor
24 Function Keys + 10-Key Numeric Pad
USB, PS2 and AT/Serial Configurations Available

Request a quote View specifications

✓ Quotes within 24 hours · ✓ Genuine products · ✓ UK-based support

iKey PMU-5K-FSR Panel Mount Keyboard Request a quote

Overview

The iKey PMU-5K-FSR is a panel mount keyboard that combines a force sensing resistor (FSR) pointing device with a 10-key numeric pad, giving dual functionality in one compact unit. It is designed for easy integration into workstations and other industrial environments.

Its 24 function keys add flexibility for software shortcuts, and Windows keys give quick access to the operating system.

Key features

Sealed design rated IP66 and NEMA 4X
116 keys, including 24 function keys, Windows keys and a 10-key numeric pad
Integrated force sensing resistor pointing device
Industrial silicone rubber keys rated for more than 10 million cycles, with a tactile mechanical snap
Slim 390.9 x 179.3 x 15.7 mm profile, with a 343.4 x 131.6 mm panel cutout
Operating temperature of -20°C to +60°C
USB, PS/2 and AT/serial configurations available, including single-cable USB

Where it is used

The PMU-5K-FSR is used in industrial and manufacturing workstations and control panels.

Get a quote

Request your quote using the form on this page and a member of our team will reply within 24 hours.

Features

Ms Windows Function Keys
Integrated Force Sensing Resistor
24 Function Keys + 10-Key Numeric Pad
USB, PS2 and AT/Serial Configurations Available

Technical Data

SKU

PMU-5K-FSR

Manufacturer

iKey

Mounting Format

Panel Mount

IP Rating

IP66

Integrations

Force Sensing Resistor

No. Of Key

116

Key Switch

MATERIAL: Industrial Silicone Rubber LIFE: Greater than 10 Million Cycles TRAVEL: 0.055 in. (1.4mm) ACTUATION FORCE: 6.35 oz. +/- 1.06 oz. (180g +/- 30g) FEEDBACK: Tactile with Mechanical Snap

Keycap Profile

Industrial Silicone Rubber

Keycap Material

Industrial Silicone Rubber

Actuation Force

Tactile with Mechanical Snap

Connectivity

PS2,USB

Case Material

No Case

Cable length

Single-Cable USB

Operating System

Windows, Mac OS X

Temperature Rating

STORAGE: -40C to +70C (-40F to +158F) OPERATING: -20C to +60C (-4F to +140F)

Vibration

POWER SPECTRAL DENSITY: 0.04g/Hz FREQUENCY RANGE: 20Hz - 2 kHz DURATION OF TEST PER AXIS: 3 hours

Dimensions

15.39" x 7.06" x 0.62" (w-h-d) 390.9mm x 179.3mm x 15.7mm SCREWS: 0.75" (19.05MM) CUTOUT: 13.52" x 5.18" (w-h) 343.4mm x 131.6mm

Weight

2.00 lbs +/- 0.10 lbs (0.91 kg +/- 0.05 kg)

Certifications

IP Rated, NEMA 4X UL60950, FCC Part 15 Class B
