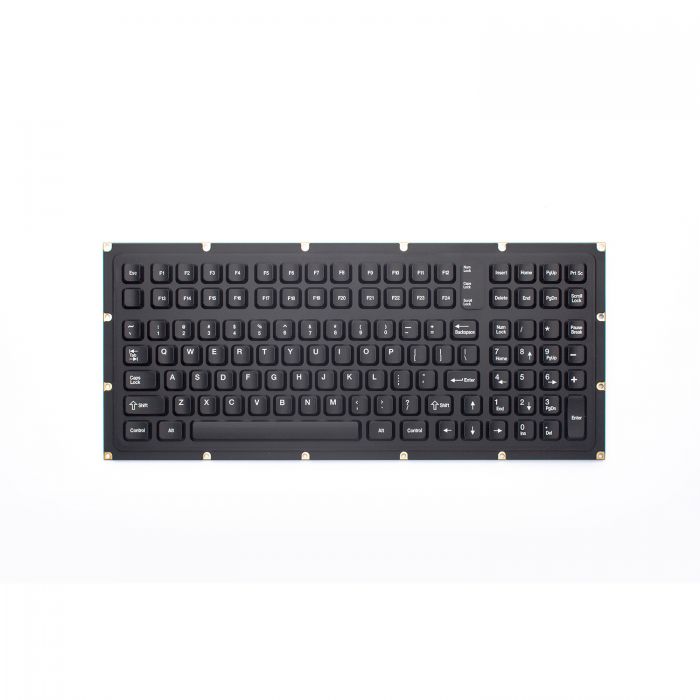

iKey KYB-114-OEM OEM Keyboard

iKey KYB-114-OEM OEM Keyboard

The iKey KYB-114-OEM provides a full 114-key layout with 24 function keys.

IP rating
IP66
Mounting
Kiosk Mount
Connection
PS2, USB
Keys
114
  • OEM Kit: PCB, Rubber Overlay and Cable
  • Rugged Construction and Characteristics
  • USB, PS2 and AT/Serial Configurations Available
  • Various Keyboard and Language Layout Options
Request a quote View specifications

✓ Quotes within 24 hours  ·  ✓ Genuine products  ·  ✓ UK-based support

iKey KYB-114-OEM OEM Keyboard Request a quote

Overview

The KYB-114-OEM provides a full 114-key layout with 24 function keys. Each kit is comprised of an industrial silicone keypad, switch matrix board, keyboard controller and cables.

Features

OEM Kit: PCB, Rubber Overlay and Cable
Rugged Construction and Characteristics
USB, PS2 and AT/Serial Configurations Available
Various Keyboard and Language Layout Options

Technical Data

SKU
KYB-114-OEM
Manufacturer
iKey
Mounting Format
Kiosk Mount,OEM
IP Rating
IP66
Integrations
No Pointer
No. Of Key
114
Key Switch
MATERIAL: Industrial silicone rubber LIFE: 10 million cycles TRAVEL: 0.055 in. ACTUATION FORCE: 200g (+/- 20g) FEEDBACK: Tactile with Mechanical Snap
Keycap Profile
Industrial Silicone Rubber
Keycap Material
Industrial Silicone Rubber
Actuation Force
Tactile with Mechanical Snap
Connectivity
PS2,USB
Case Material
No Case
Housing Colour
Black
Cable length
LENGTH: 10 feet (3 meters) DESIGN: "Y" PS/2, AT or Single-Cable USB
Operating System
Windows, Mac OS X
Temperature Rating
STORAGE: -40C to +90C (-40F to +194F) OPERATING: -40C to +70C (-40F to +158F)
Vibration
POWER SPECTRAL DENSITY: 0.04g/Hz FREQUENCY RANGE: 20Hz - 2 kHz DURATION OF TEST PER AXIS: 3 hours
Dimensions
15.00" x 6.50" x 0.42" (w-h-d) 381.0mm x 165.1mm x 10.7mm
Weight
1.5 lbs (0.68 kg)
Certifications
IP Rated, NEMA 4X UL60950, FCC Part 15 Class B
